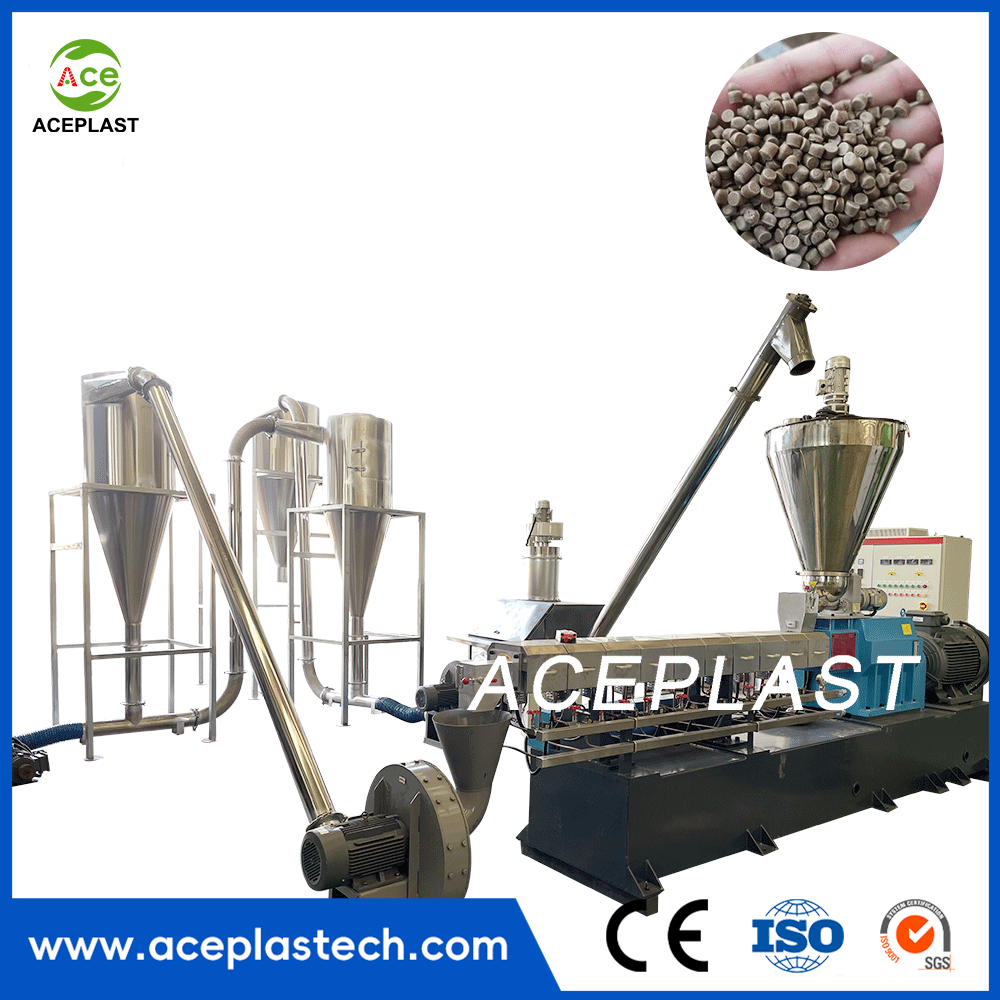

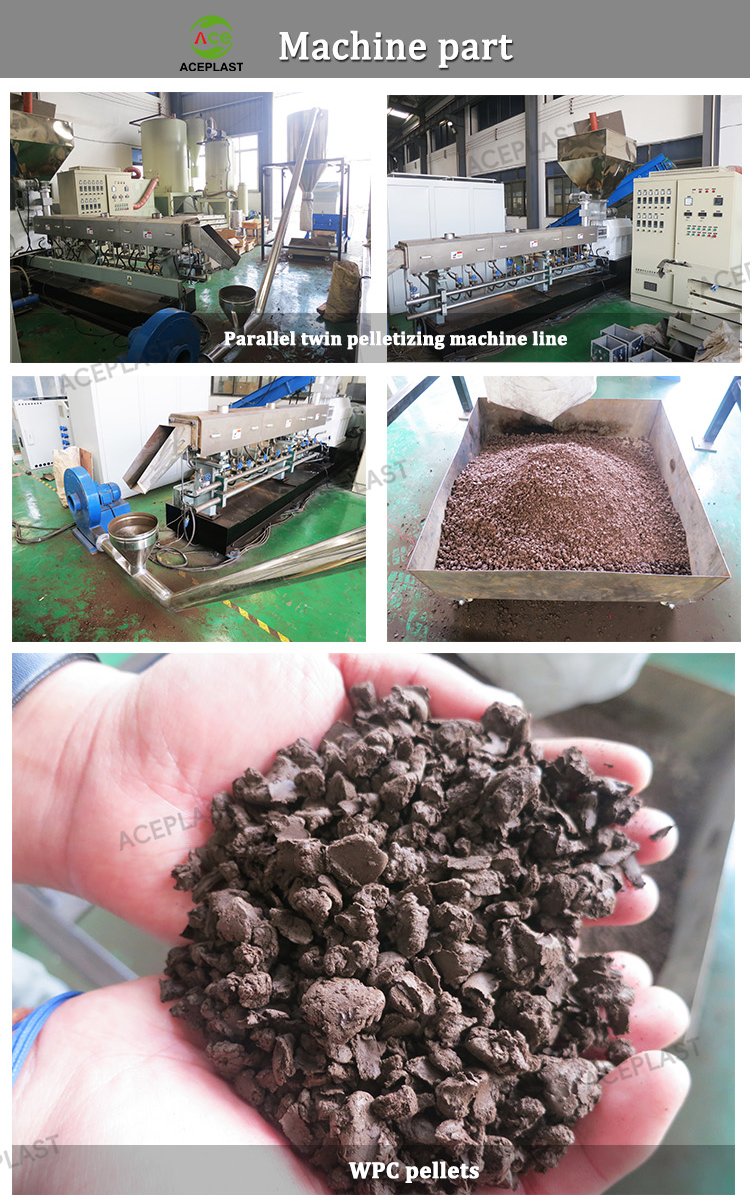

WPC pelletizing line
Parallel twin screw extruder granulating machine
WPC pelletizing machine
WPC wood plastic compounding pelletizing line
Applications:
This is used to produce PP/PE+ wood pellets. It is a necessary equipment if we choose two step for making WPC products like WPC decking, board, profile. Recently, WPC product is very popular in international and domestic market, such as WPC door, as well as all types WPC product.
Technical Data:
| Model | Diameter(mm) | L/D | Screw rotating speed (r/min) | Main motor power (kw) | Screw torque (N.m) | Torque level(T/N³) | Output (kg/h) |
| SHJ-65B | 62.4 | 32-64 | 600 | 90 | 675 | 4.8 | 225–375 |
| 600 | 110 | 620 | 4.4 | 330–550 | |||
| SHJ-75B | 71 | 32-64 | 600 | 132 | 990 | 4.6 | 396–660 |
| 600 | 160 | 990 | 4.6 | 450–750 | |||
| SHJ-75D | 71 | 32-64 | 600 | 250 | 900 | 4.2 | 500–1000 |
| SHJ-95A | 93 | 32-64 | 400 | 250 | 2815 | 5.9 | 750–1250 |
| 500 | 250 | 2250 | 4.7 | 750–1250 | |||
| SHJ-95B | 93 | 32-64 | 600 | 315 | 2365 | 5 | 945–1575 |
| SHJ-135A | 133 | 32-64 | 400 | 550 | 6190 | 4.6 | 1650–2750 |
| 500 | 750 | 6750 | 5.1 | 2250–3750 |
