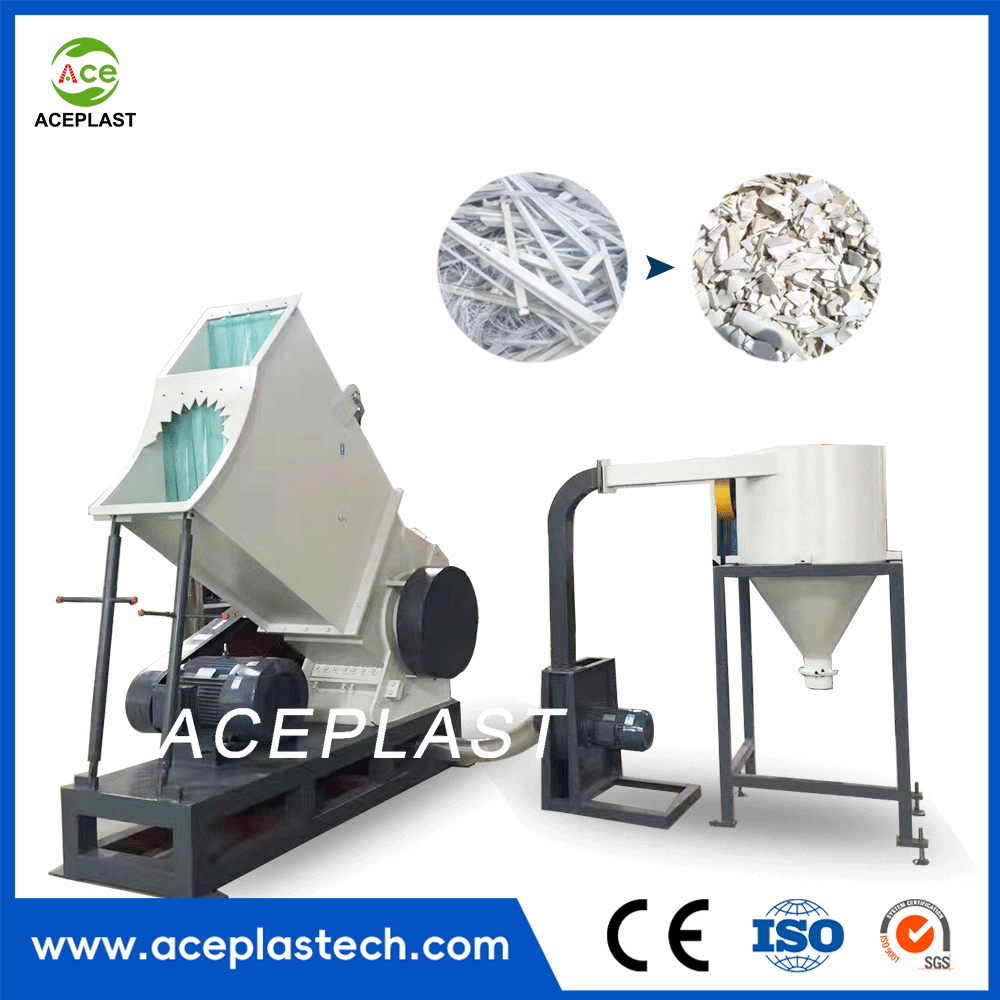

Aceplast Machinery is a factory in China specializing in the production of SWP Series Crusher. Our customers are all over the world. If you are interested in the machines produced by our factory, please contact us.
Machine features:
Low energy consumption, easy to install, operate and maintain.
Change the different diameter sieve, can get different size of final scrap.
Machine automatic stop when the cutting blades are exposed.
Application:Crushing waste plastic pipe and plastic profile for purpose of recycling.
| No | Model | SWP400 | SWP500 | SWP 630 |
| 1 | Rotary blade diameter | 400mm | 500mm | 630mm |
| 2 | Quantity of rotary blade | 5pcs | 5pcs | 10pcs |
| 3 | Quantity of static blade | 2pcs | 2pcs | 4pcs |
| 4 | Motor power | 18.5kw | 22kw | 37KW |
| 5 | Size of mesh screen | 10mm | 10mm | 10mm |
| 6 | Feeding mouth | 390*350mm | 575*320mm | 620×470mm |
| 7 | Capacity | 150-250kg/h | 300-350kg/h | 500-650 |
| 8 | Weight | 1100kg | 1280kg | 1580kg |
| 9 | size | 1900*1200*2000 | 2500*1200*2000 | 2500×1200×2000 |
