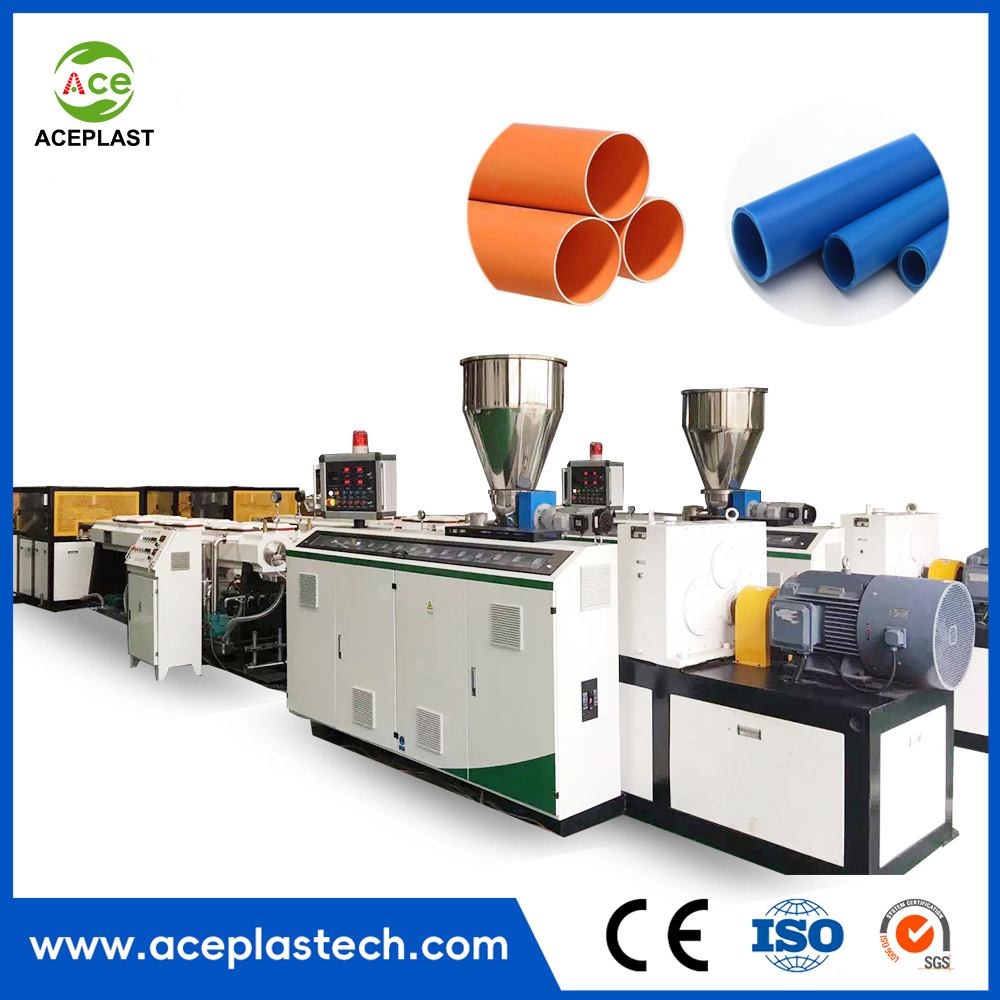

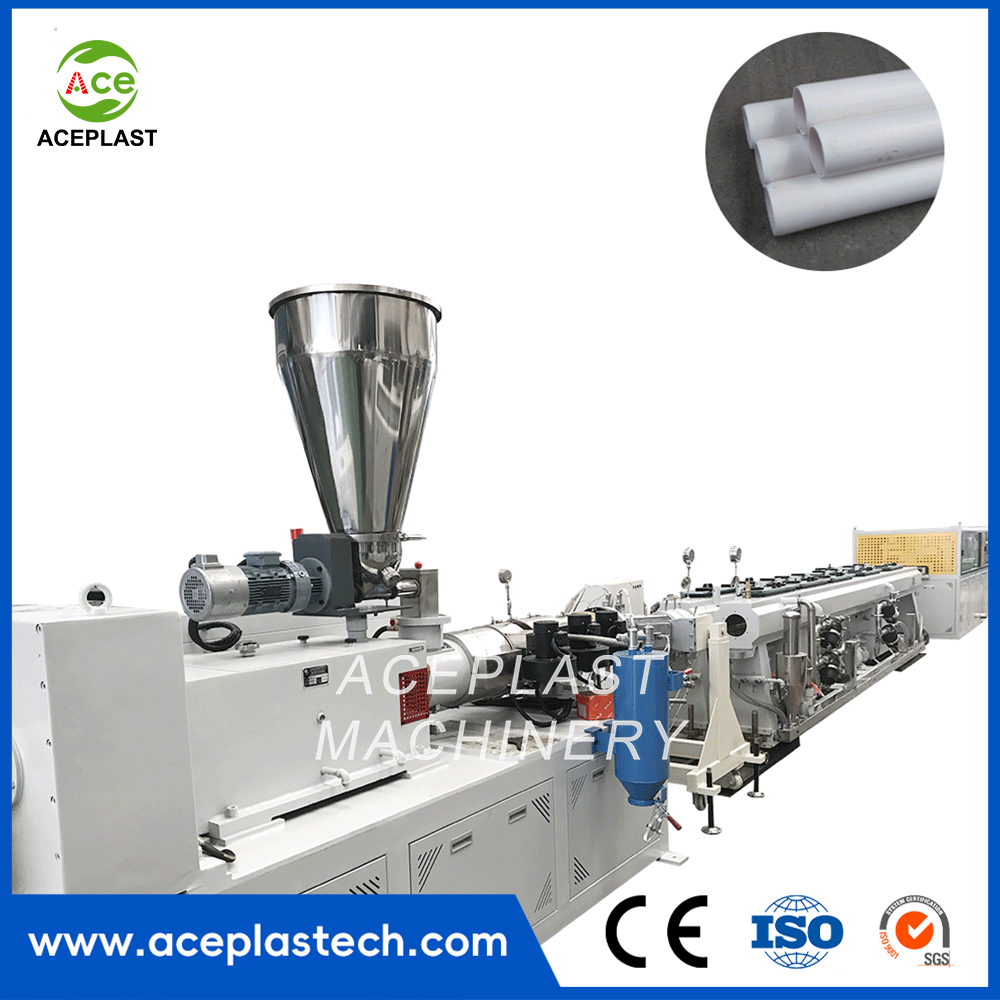

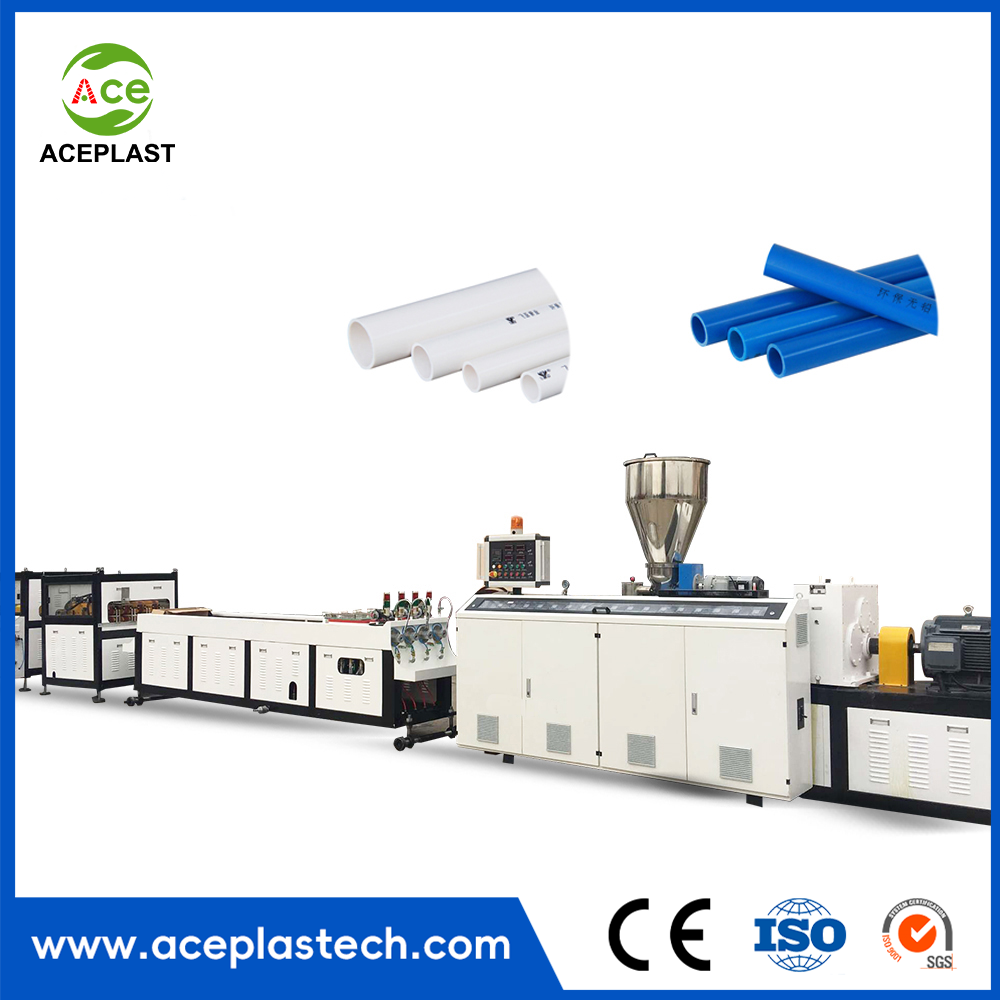

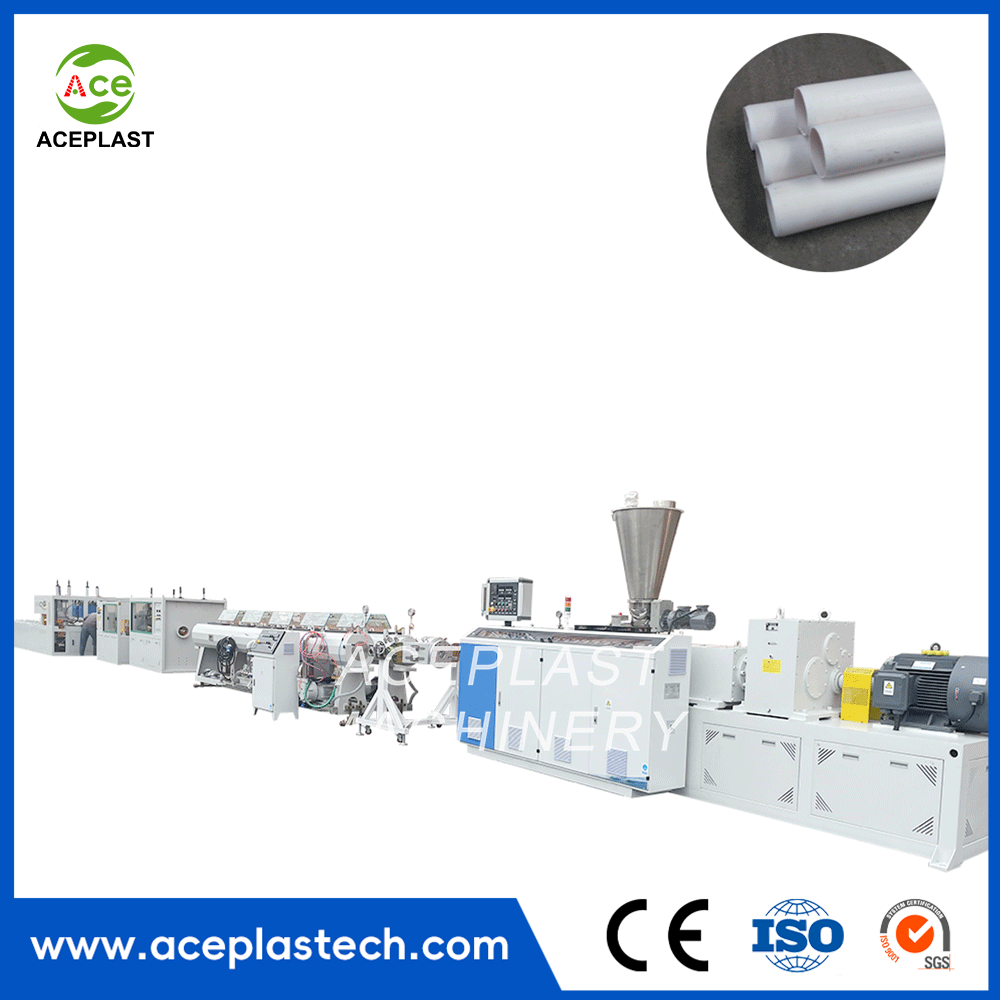

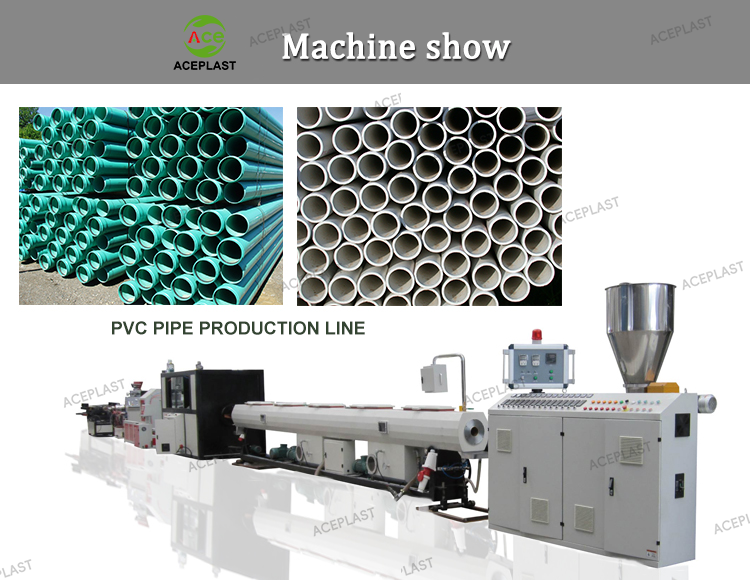

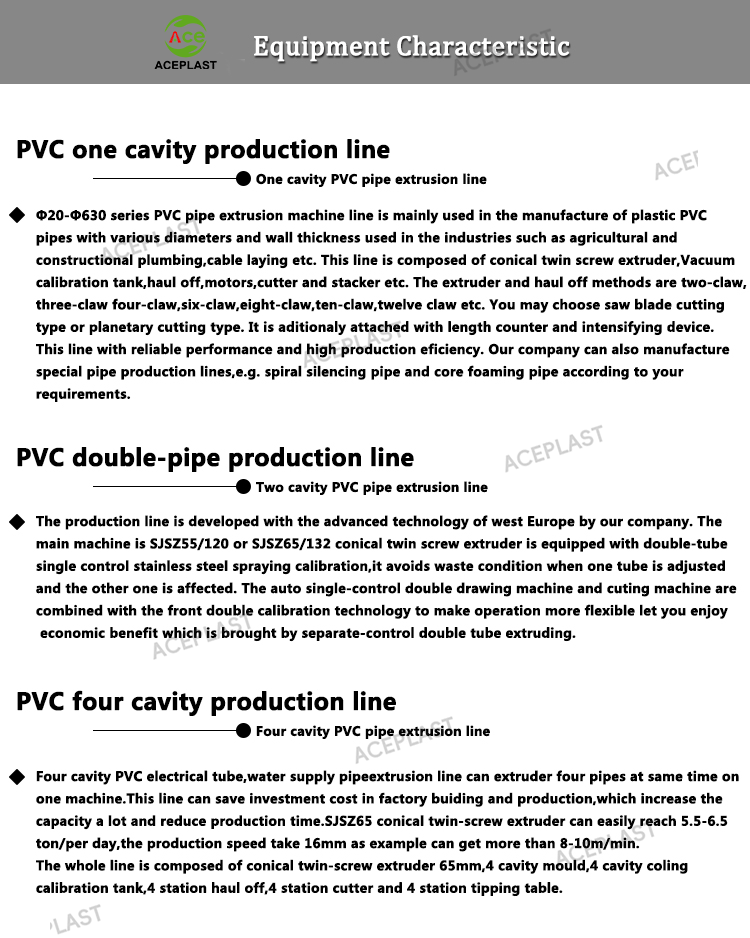

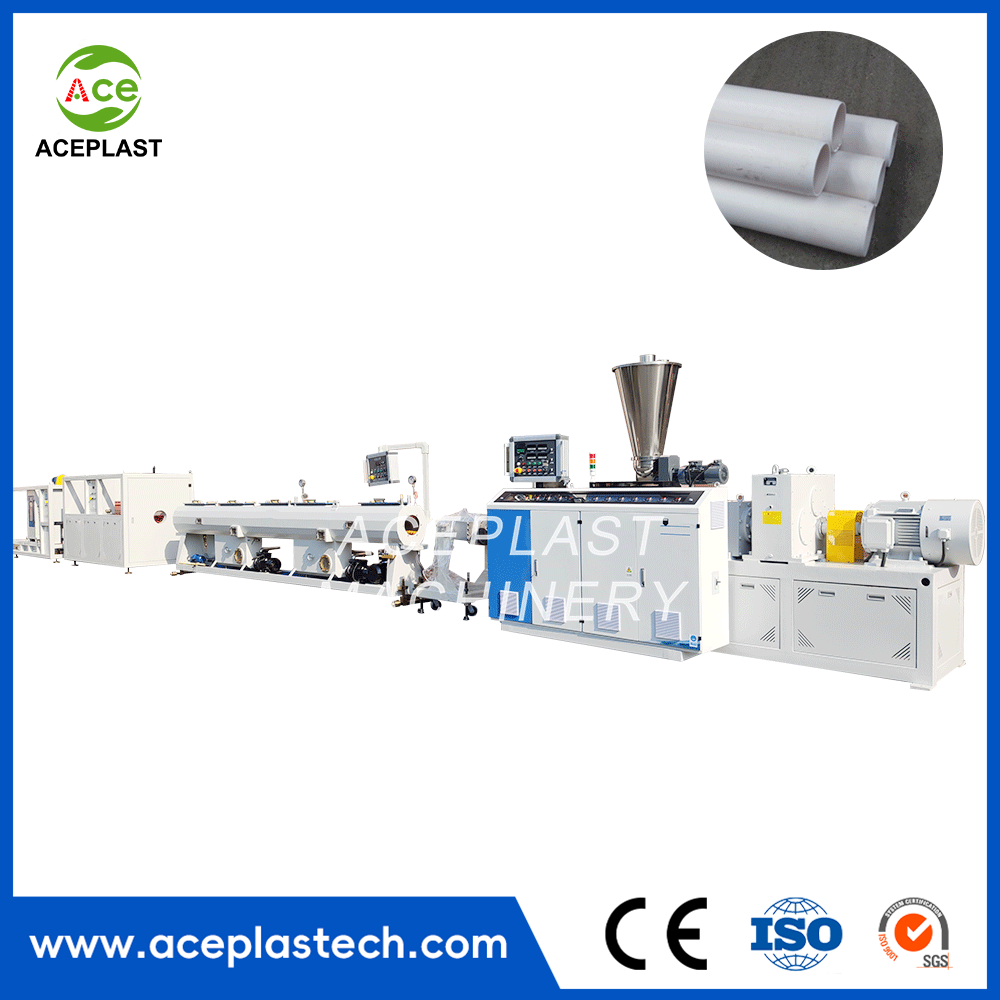

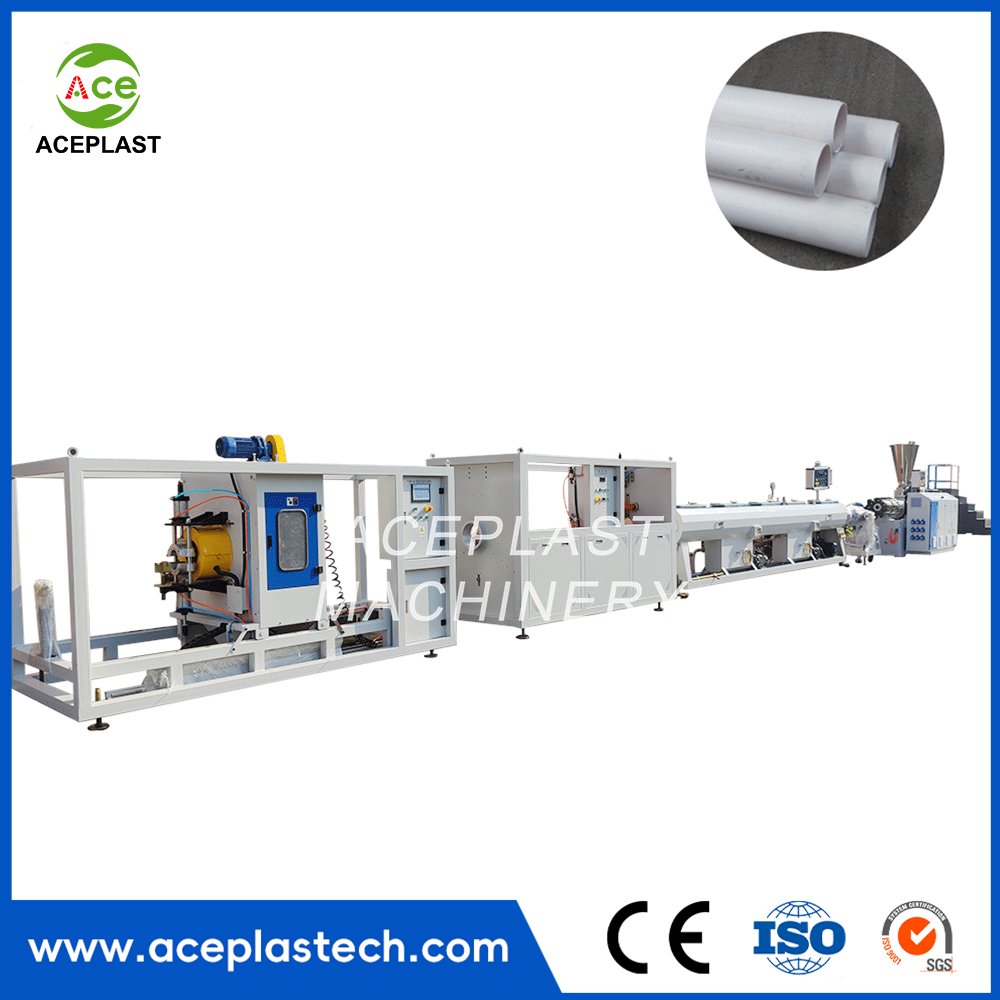

PVC one cavity pipe production line

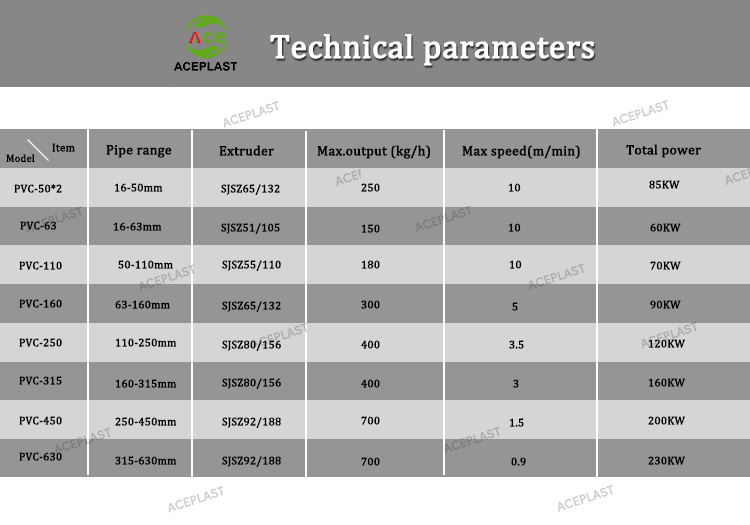

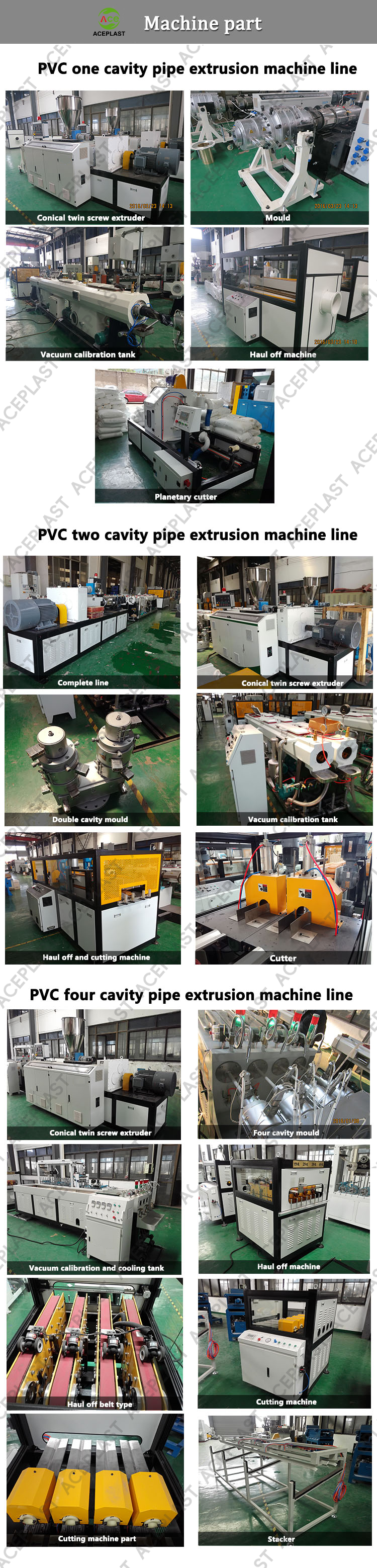

Φ20-Φ630 series PVC pipe extrusion line is mainly used in the manufacturing of plastic PVC pipes with various diameters and wall thickness, used in the industries such as agricultural and constructional plumbing, cable laying etc. This line is composed of conical twin screw extruder, vacuum calibration tank, hauling off machine, cutter and stacker etc. The hauling off methods are two-claw,three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is attached with length meter counter and intensifying device. This line with reliable performance and high production efficiency. Our company can also manufacture special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your requirements.
PVC double-pipe production line
The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/120 or SJSZ65/132 conical twin screw extruder. The line is also equipped with double-tube single control stainless steel spraying calibration, which avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double hauling machine and cuting machine are combined with the front double calibration technology to make operation more flexible. Let you enjoy economic benefit which is brought by separate-control double tube extruding.
PVC four cavity pipe production line
Four cavity PVC electrical tube, water supply pipe extrusion line can extrude four pipes at same time on one machine. This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day. The production speed, taking 16mm as example, can get more than 8-10m/min. The whole line is composed of conical twin-screw extruder SJSZ65/132, 4 cavity mould, 4 cavity cooling calibration tank, 4 station hauling off machine, 4 station cutter and 4 station tipping table.
