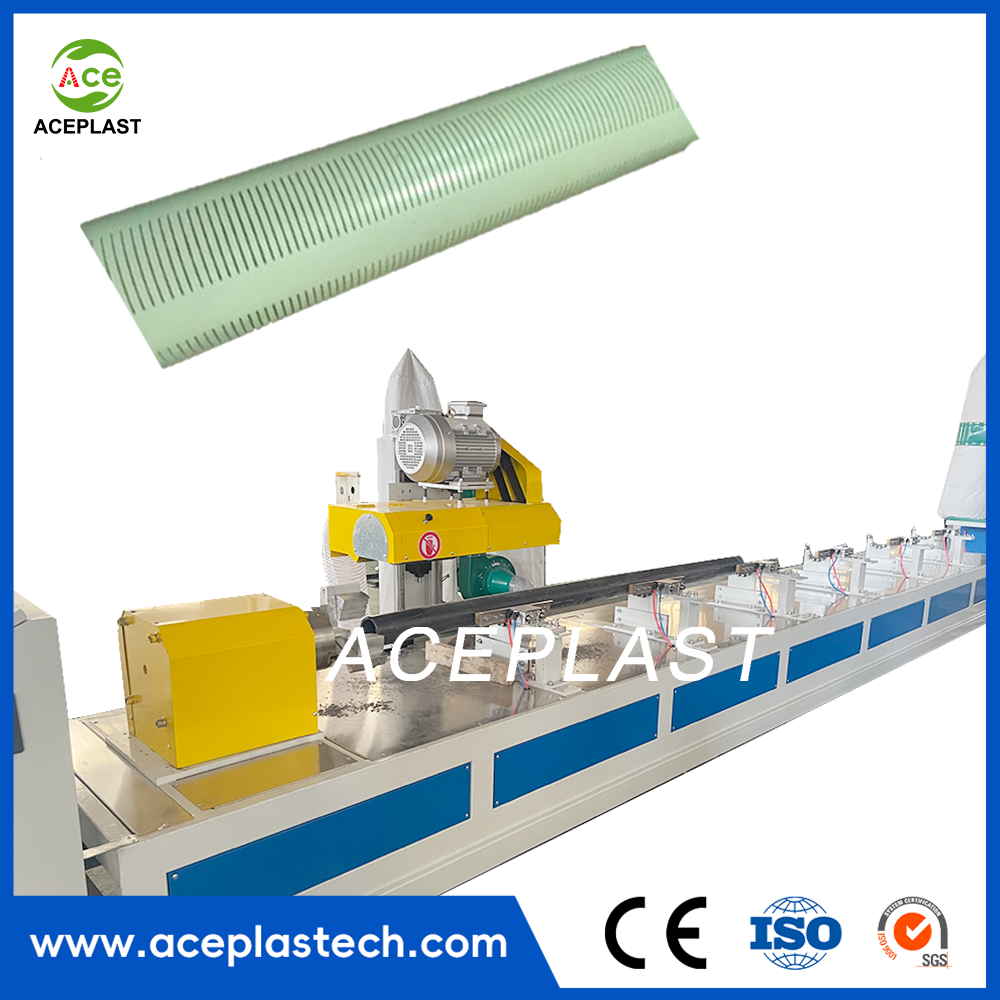

Plastic Pipe Slotting Machine
Automatic PVC pipe slotting machine:
PVC pipe slotting machine has two style, vertical and horizontal.
Different Type Machine Design Different.
Description:

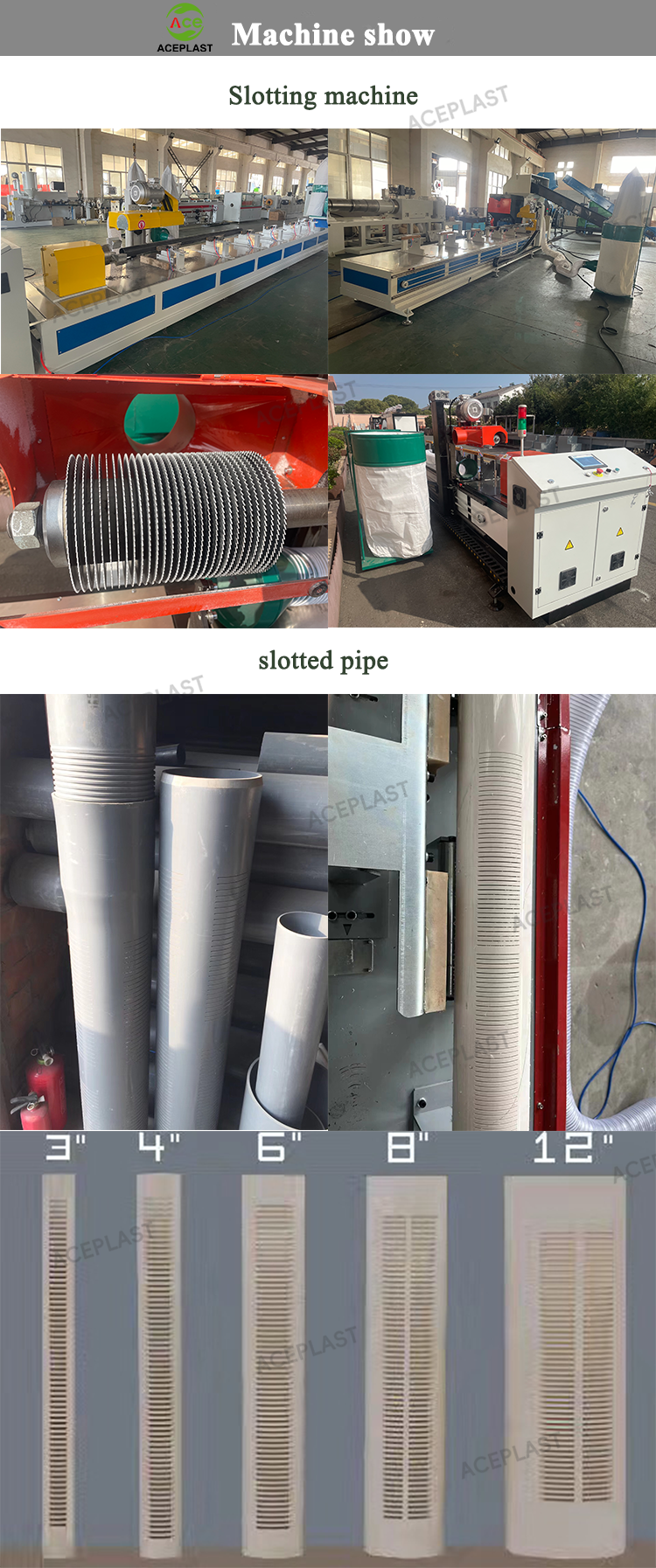

This plastic pipe slotting machine is mainly used for slotting PVC and PE pipes, like drainage pipe or leaking pipe in playgrounds, parks, lawns. we can design slotting machine for 3 meter or 6 meter pipes.
Features:
1.Pipe could be slotted with several slots at one time. The width of slot could be adjusted by changing the blade.
2.Varied diameter pipe, it could be applied for differnt diameter pipes.
3.PLC Control system, easy operation.
Technical Parameters vertical style:
| Slotting Motor Power | 5.5KW |
| Rotary Motor Power | 0.75KW |
| Moving Motor Power | 1.5KW |
| Pipe Length | 2.9m(adjustable) |
| Qty of blade | 63 pieces(adjustable) |
| Tchikness of blade | 0.5mm(adjustable) |
| Width of slot | 0.8mm(adjustable) |
| Applied pipe adiameter | 63-630mm |
| Disance between slot | 9mm |
Technical Parameters horizontal style:
| Slotting Motor Power | 2.2KW * N , QTY according to pipe length and hole quanity asked |
| Rotary Motor Power | 0.75KW |
| frame up and down | 1.5KW |
| Pipe Length | 3m, 6m, customied. |
| Qty of blade | 28pcs(customized) |
| Tchikness of blade | 0.5mm(adjustable) |
| Width of slot | 0.8mm(adjustable) |
| Applied pipe adiameter | 63-630mm |
| Disance between slot | customized |
