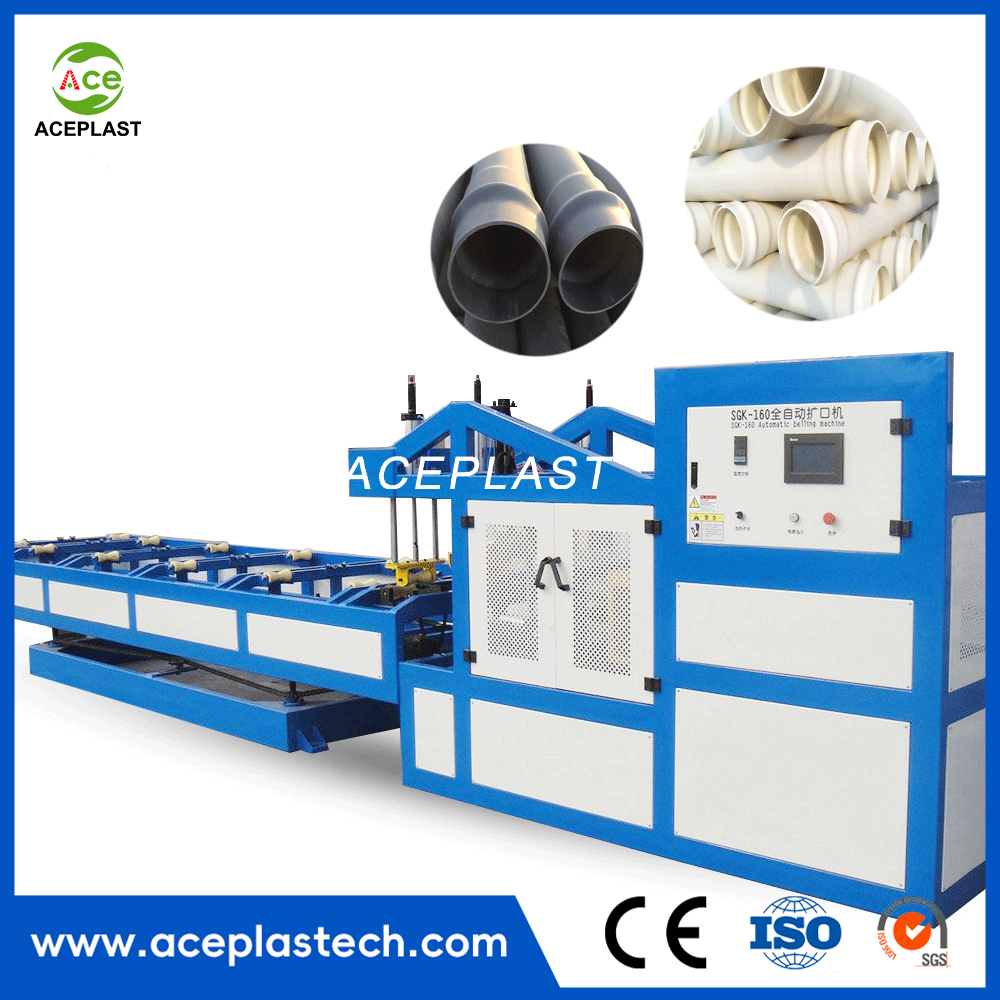

Plastic pipe belling machine
Machine features:

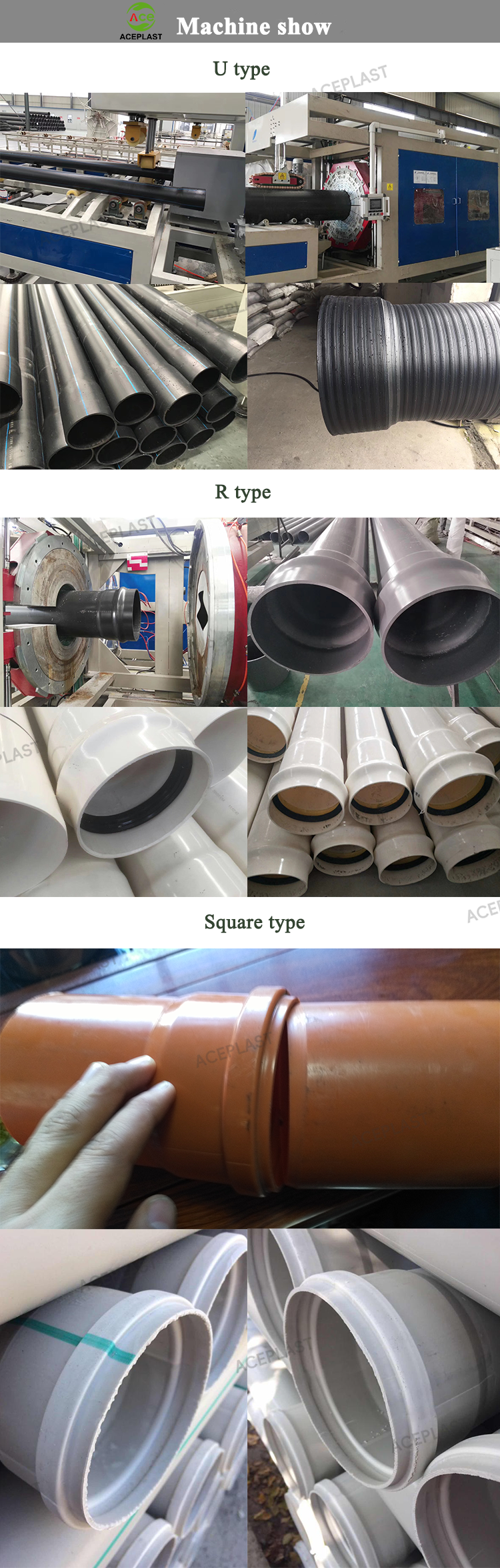

- PVC pipe belling machine is suitable for the R type and U type plastic pipes.
- The machine not only used in line with the pipe production line but also can be used as a single machine.
- The characteristics of this machine are full automatic, stable and reliable, easy to operate.
Machine parameters :
| Model | Pipe Diameter | Heating Method | Belling Method | Heating power | Dimension |
| SGK110 | 50-110mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
| SGK160 | 50-160mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
| SGK200 | 50-200mm | Electric heating | Mould physical expansion | 10.5kw | 7855x1350x1900mm |
| SGK250 | 110-250mm | Electric heating | Mould physical expansion | 10.5kw | 7830x1620x1700mm |
| SGK315 | 160-315mm | Electric heating | Mould physical expansion | 14kw | 8050x1750x1900mm |
| SGK450 | 200-450mm | Electric heating | Mould physical expansion | 18kw | 8290x2090x2080mm |
| SGK500 | 315-500mm | Electric heating | Mould physical expansion | 18kw | 8500x3050x2100mm |
| SGK630 | 400-630mm | Electric heating | Mould physical expansion | 22.5kw | 8615x3125x2500mm |
